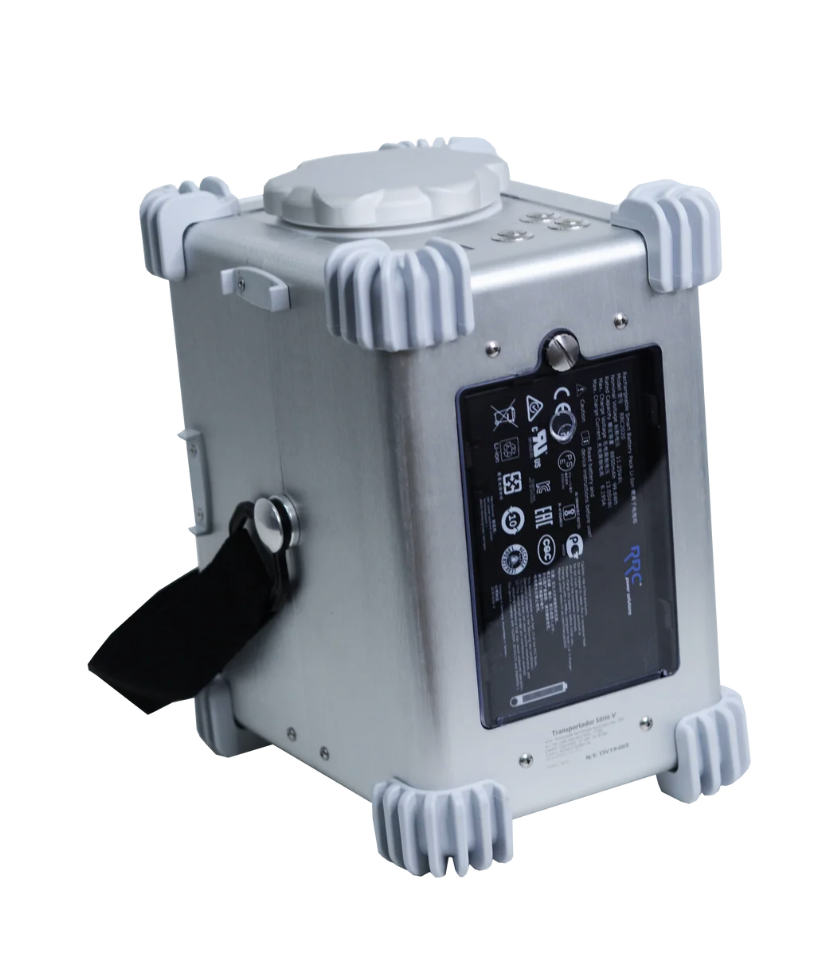

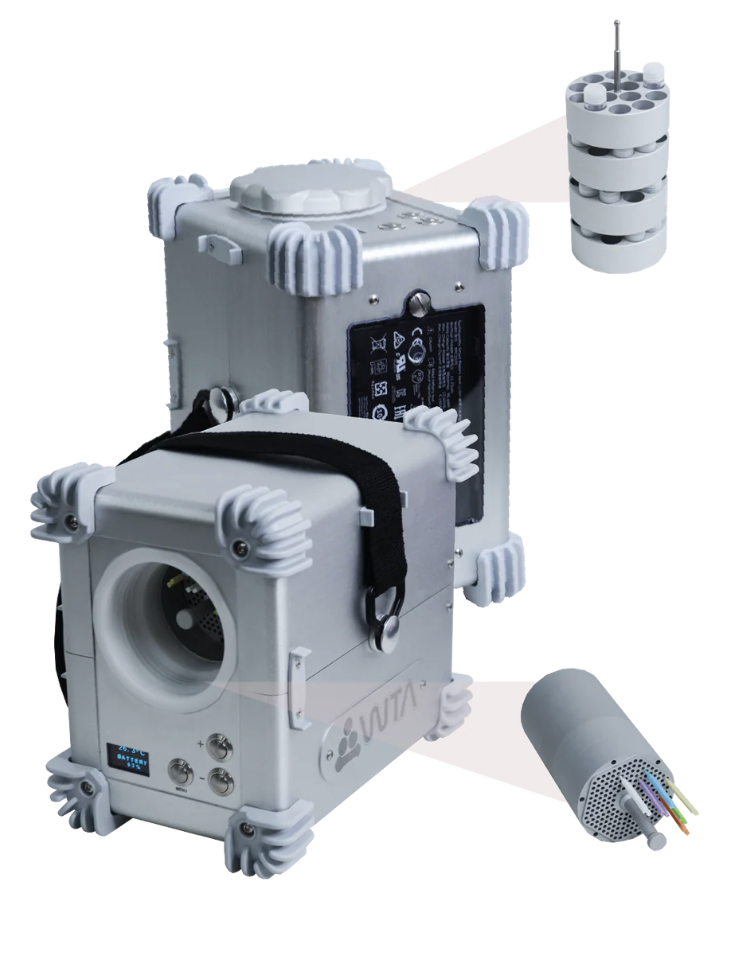

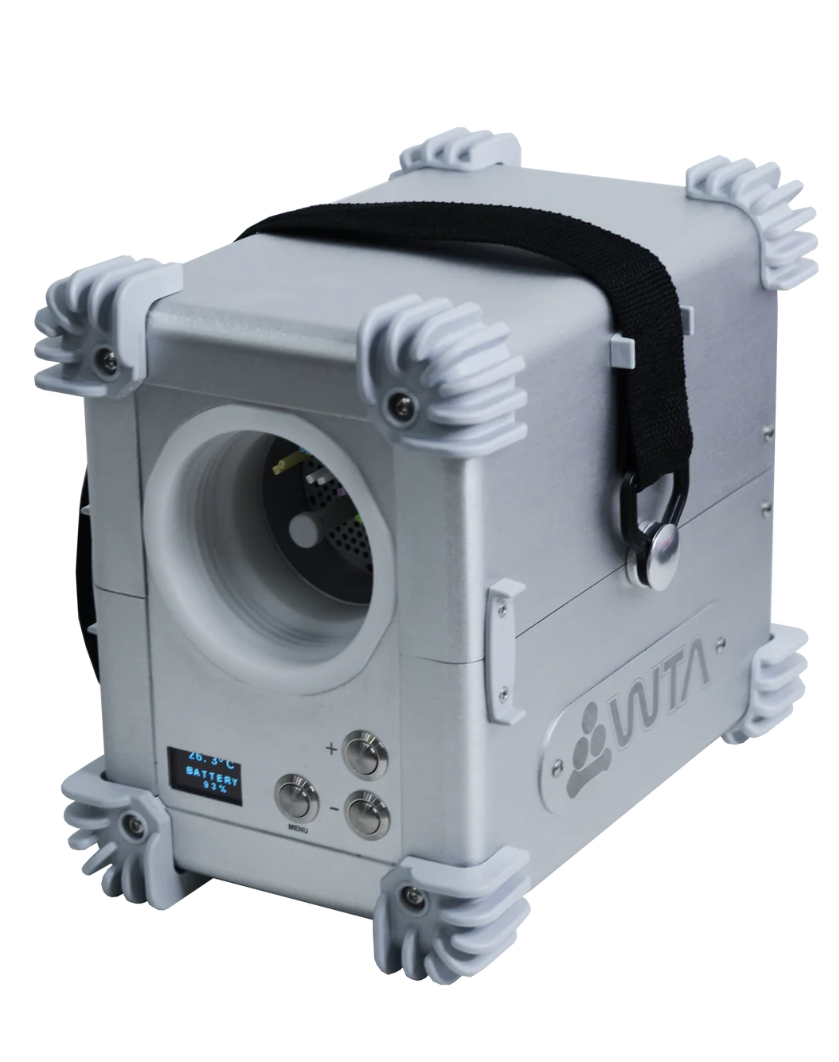

TSV - Embryo and Oocyte Transporter

Transport bovine embryos and oocytes with confidence using the TSV Embryo & Oocyte Transporter. Designed for veterinarians, embryologists, IVF laboratories, and embryo transfer professionals, this advanced transport system maintains precise temperature control and provides secure storage for reproductive specimens during field collection and laboratory transport.

Compatible with the same rechargeable batteries used in EI Medical EVO and IBEX ultrasound systems, the TSV Transporter offers exceptional convenience and extended operating time for busy reproductive programs.

Whether transporting oocytes following ovum pick-up (OPU) or moving embryos for transfer or cryopreservation, the TSV Transporter helps maintain specimen quality while delivering reliable performance in the field or laboratory.

Key Features

• Large Storage Capacity – Holds up to 56 × 1.2 mL microtubes for oocytes and 198 × 0.25 mL embryo straws, plus 6 additional heated wells for embryo transfer gun tips and accessories.
• Precise Temperature Control – Adjustable temperature range from 34°C to 39°C (93.2°F to 102.2°F) to maintain optimal conditions for embryo and oocyte transport.
• Long-Lasting Rechargeable Battery – Provides up to 80 hours of continuous operation on a single charge, making it ideal for mobile embryo transfer and IVF programs.
• Wireless App Control – Connect to the WTATech App via Bluetooth to monitor and adjust temperature settings in real time.
• 24-Hour Data Logging – Automatically records temperature history to support laboratory quality assurance, traceability, and regulatory documentation.
• Portable & Durable Design – Lightweight construction allows for easy transport between farms, veterinary clinics, and IVF laboratories.

Applications

• Bovine embryo transport
• Oocyte transport following OPU
• Embryo transfer (ET) programs
• In vitro fertilization (IVF) laboratories
• Mobile reproductive services
• Cattle reproductive biotechnology
• Veterinary reproductive medicine

Specifications

• Temperature Range: 34°C–39°C (93.2°F–102.2°F)
• Capacity:
• 56 × 1.2 mL oocyte microtubes
• 198 × 0.25 mL embryo straws
• 6 heated wells for embryo transfer gun tips
• Operating Time: Up to 80 hours per battery charge
• Dimensions: 275 × 175 × 230 mm (10.8 × 6.9 × 9.1 in)
• Weight: 3.3 kg (7.3 lb)
• Warranty: 3 Years

What’s Included

• TSV Embryo & Oocyte Transporter

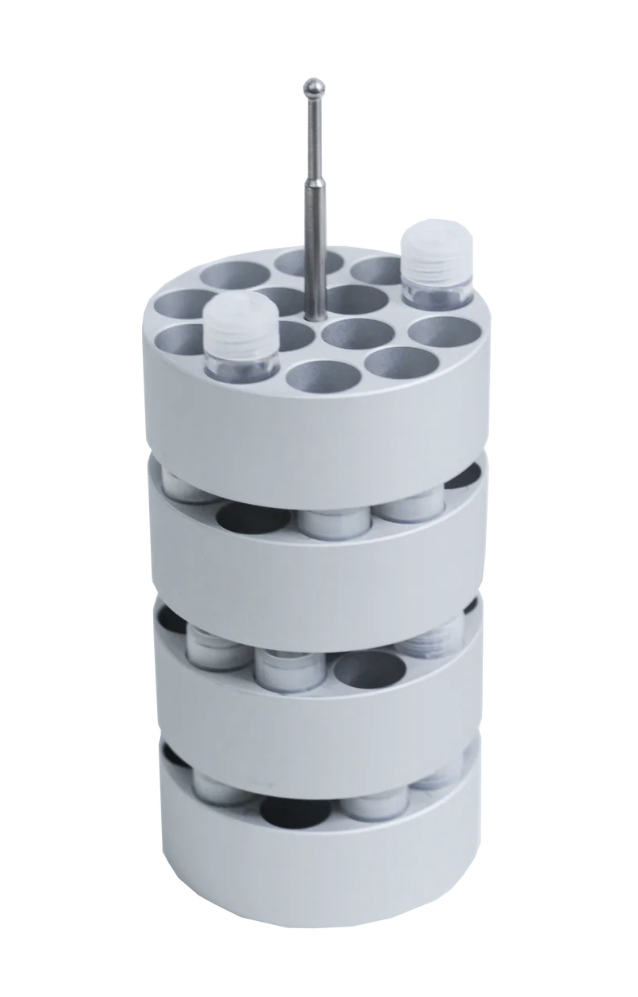

• Oocyte Block

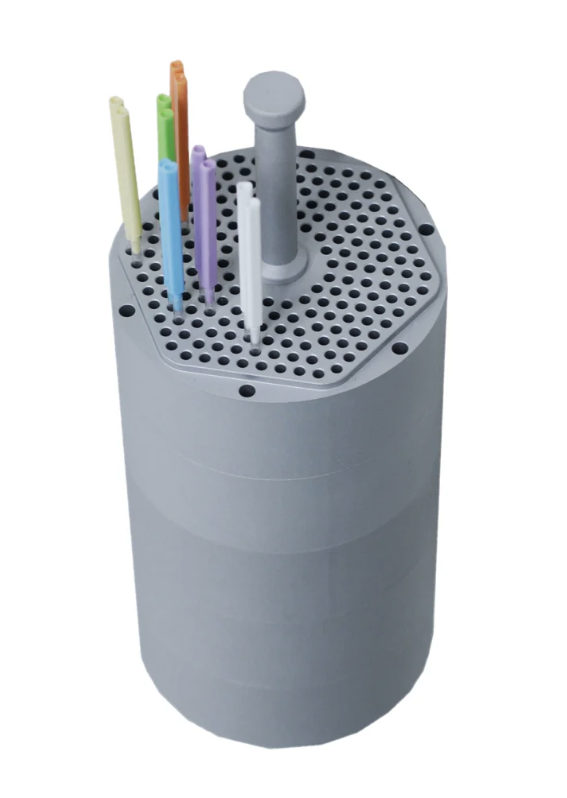

• Embryo Block
• Rechargeable Battery
• Battery Charger

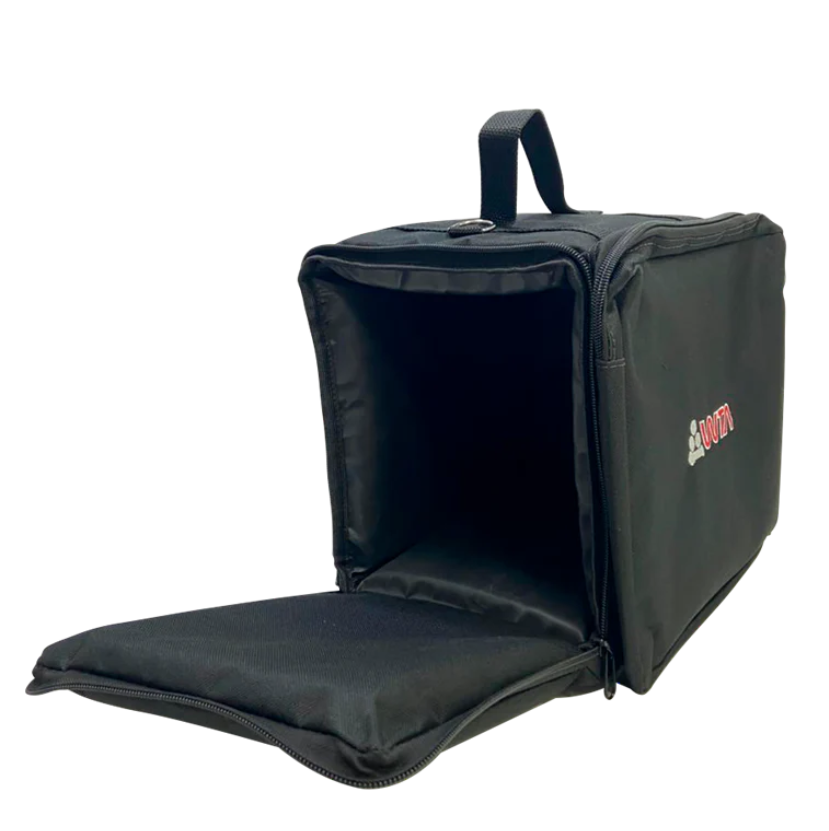

• Carrying Bag
