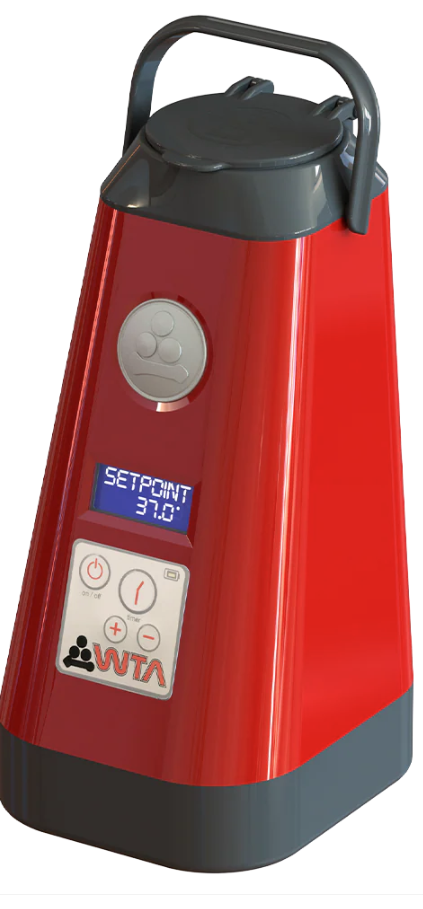

Portable Battery-Powered Semen & Embryo Thaw Unit

The Semen and Embryo Thawing Unit is a reliable, field-ready thaw bath designed to safely and consistently thaw semen and embryo straws for bovine, equine, and small ruminant reproduction work. It delivers precise digital temperature control and even heat distribution to protect straw quality and improve conception outcomes.

Built with a highly impact-resistant plastic housing, this portable thaw unit is made for everyday use in the lab, clinic, or chute-side in tough farm conditions. The polished, easy-to-clean water reservoir, four numbered dividers, and sealed lid help maintain hygiene and organization while minimizing heat loss and contamination risk.

Digital temperature adjustment from 25 to 50°C (77 to 122°F) with an accuracy of +/- 0.5°C keeps thawing conditions consistent and repeatable. An audible alarm alerts you to temperature or time settings, and the unit is protected so that running out of water will not damage the equipment.

For maximum flexibility in the field, this thaw bath uses the same batteries as EI Medical EVO and IBEX ultrasound machines, allowing you to streamline your power setup and reduce the number of batteries you carry. Technology, comfort, and safety are built in to support efficient AI and ET workflows.

Key Features
• Safe, consistent thawing of semen and embryo straws with even heat distribution
• Digital temperature control from 25–50°C (77–122°F) with +/- 0.5°C accuracy
• Highly impact-resistant plastic housing designed for rugged field conditions
• Four numbered dividers for easy straw organization and workflow efficiency
• Polished, easy-to-clean water reservoir for better hygiene and maintenance
• Sealed lid to help retain heat and reduce contamination risks
• Protected electronics so running without water will not damage the unit
• Compatible with EI Medical EVO and IBEX ultrasound batteries for convenient field use
• Ideal for bovine, equine, and small ruminant AI and embryo transfer programs

Technical Specifications
• Material: High-strength plastic housing
• Dimensions (L x W x H): 130 x 110 x 195 mm
• Weight: 1.1 kg
• Maximum power: 36 W
• AC power input: 110–240 Vac, 50/60 Hz, 1 A
• DC power input: 12 Vdc, 3.0 A
• Temperature range: 25–50°C (77–122°F)
• Temperature stability: +/- 0.5°C
• Timer range: 10–300 seconds

Warranty and Included Items
• Warranty: 3 years

Included items:
• Vehicle cable with alligator connection (for mobile and chute-side use)
• Defogger handle and divider
• Power supply
• Battery
